Fully Automatic Fermentation Tank

Fully automatic fermentation tank is a set of automation training device, is mainly composed of tanks, control cabinet and control software. Automatic fermentation system of material, structure, and layout is completely in accordance with the fermentation system design, in line with the GMP standard. The system is equipped with the required feeding bottles, peristaltic pump, circulating pump, control valve, the pipeline system, control system, fully guarantee the system security, reliability, Also can be configured to air, steam and water pretreatment system, in the completion of installation and debugging, need to access steam, air, water and power supply can be run on fermentation.

Usages of Fully Automatic Fermentation Tank

It is a kind of stainless steel tank and mainly used for dairy, food, biotechnology, beverage, wine and other industry to stir and ferment.

Characteristics of Fully Automatic Fermentation Tank

1、 In accordance with the requirements for health level design, highly humanized design, easy to operate. Smooth transmission, low noise.

2、 Appropriate diameter ratio design, according to the need to customize mixing device, energy-saving mixing, and fermentation effect is good.

3、 Use SUS304 or imported SUS316 material manufacturing.

4、 Tanks with the head up and down transition adopt spinning R Angle is excessive, level off is smooth, no health corner;

5、 Inner surface uses the mirror electrolytic polishing, surface cold rolled color matte or frosted;

6、 After all the control function is set by the user through a computer automatic control, automatic complete organism cultivation process.

Technical Parameters of Fully Automatic Fermentation Tank

Volume (L)	Rotate speed（r/min）	Working pressure（MPA）	Testing pressure	Motor power (KW)	operating temperature
100L	36	0.15	0.30	0.37	≤100⁰C
200L	36	0.15	0.30	0.5	≤100⁰C
300L	36	0.15	0.30	0.5	≤100⁰C
500L	36	0.15	0.30	0.75	≤100⁰C
600L	36	0.15	0.30	0.75	≤100⁰C
800L	36	0.15	0.30	1.1	≤100⁰C
1000L	36	0.15	0.30	1.1	≤100⁰C
1200L	36	0.15	0.30	1.1	≤100⁰C
1400L	36	0.15	0.30	2.2	≤100⁰C
1600L	36	0.15	0.30	2.2	≤100⁰C

Notes:

1. The technical parameters of fermentation tank is standard configuration. Any specific requirements, please point out.

2. The jacket working pressure≤ 0.09Mpa also can be made according to customers’ requirements.

3. The process parameters that need provided when choosing the fermentation tank: the nature of material, working pressure, temperature, specific requirements, etc.

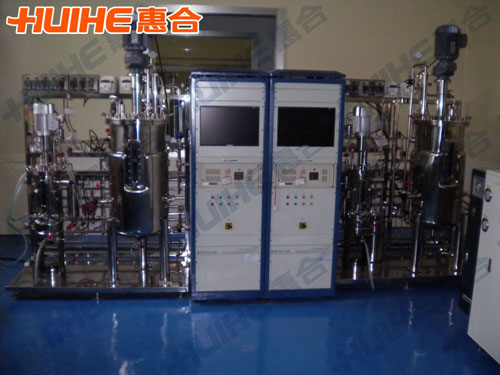

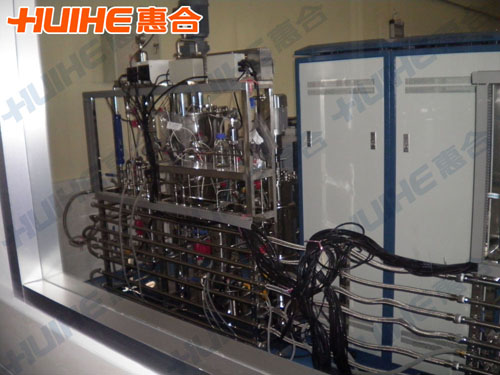

Fully Automatic Fermentation Tank Finished Picture
