Your are here: Home >> Products >>High Sheared Homogenizer
High sheared homogenizer is a highly efficient, fast and evenly to a phase or multiple phase (liquid, solid and gas) into another mutual miscibility of continuous phase (usually liquid) of the process equipment. And in each phase is normally not miscibility. The external energy input the two kinds of material restructuring to become homogenous phase.
Directory
- Live Demonstration of High Pressure Homogenizer
- Usages of High Sheared Homogenizer
- Structure of High Sheared Homogenizer
- Characteristics of High Sheared Homogenizer
- Technical parameters of Homogenizer
- High Sheared Homogenizer Finished Picture

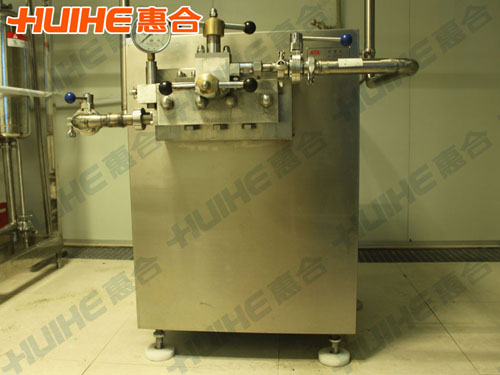

Live Demonstration of High Pressure Homogenizer
Usages of High Sheared Homogenizer
Emulsification Homogeneous Series is apply to food industry, fine chemical industry, petroleum chemical industry, pesticide industry, biological medicine industry, daily chemical industry, papermaking industry material dispersion, emulsion, homogeneous, dissolved, response operation.

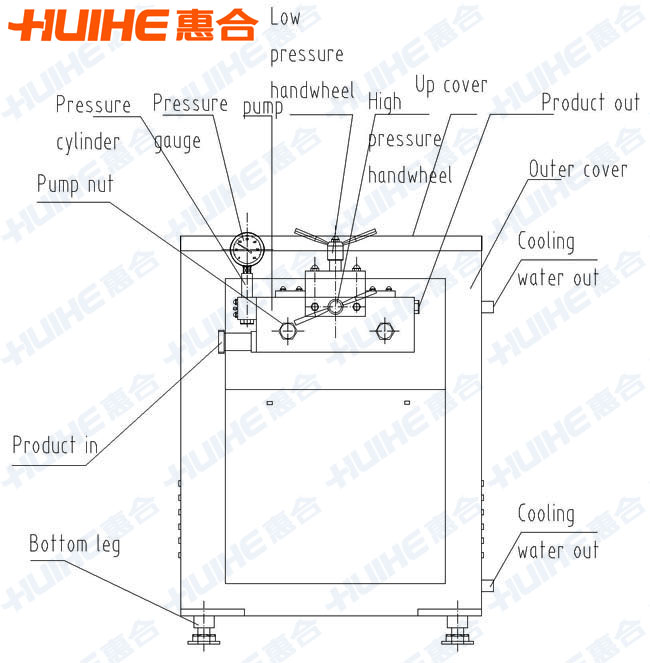

Structure of High Sheared Homogenizer
Characteristics of High Sheared Homogenizer
Technical parameters of Homogenizer
|
Model |
Flow L/H |
Maximum pressure（MPa） |
Rated pressure（MPa） |
Motor power（KW） |
Body size
（length*width*height） |
|
GJJ-0.2/25 |
200 |
25 |
20 |
2.2 |
755*520*935 |
|
GJJ-0.3/25 |
300 |
25 |
20 |
3 |
755*520*935 |
|
GJJ-0.5/25 |
500 |
25 |
20 |
4 |
1010*616*975 |
|
GJJ-0.8/25 |
800 |
25 |
20 |
5.5 |
1020*676*1065 |
|
GJJ-1/25 |
1000 |
25 |
20 |
7.5 |
1100*676*1065 |
|
GJJ-1.5/25 |
1500 |
25 |
20 |
11 |
1100*770*1100 |
|
GJJ-2/25 |
2000 |
25 |
20 |
15 |
1410*850*1190 |
|
GJJ-2.5/25 |
2500 |
25 |
20 |
18.5 |
1410*850*1190 |
|
GJJ-3/25 |
3000 |
25 |
20 |
22 |
1410*960*1280 |
|
GJJ-4/25 |
4000 |
25 |
20 |
30 |
1550*1050*1380 |
|
GJJ-5/25 |
5000 |
25 |
20 |
37 |
1605*1200*1585 |
|
GJJ-6/25 |
6000 |
25 |
20 |
45 |
1671*1260*1420 |
|
GJJ-8/25 |
8000 |
25 |
20 |
55 |
1671*1260*1420 |
|
GJJ-10/25 |
10000 |
25 |
20 |
75 |
2725*1398*1320 |
|
GJJ-12/25 |
12000 |
25 |
20 |
90 |
2825*1500*1320 |
|
GJJ-0.3/32 |
300 |
32 |
25 |
4 |
1010*616*975 |
|
GJJ-0.5/32 |
500 |
32 |
25 |
5.5 |
1020*676*1065 |
|
GJJ-0.8/32 |
800 |
32 |
25 |
7.5 |
1100*676*1065 |
|
GJJ-1/32 |
1000 |
32 |
25 |
11 |
1100*770*1100 |
|
GJJ-1.5/32 |
1500 |
32 |
25 |
15 |
1410*850*1190 |
|
GJJ-2/32 |
2000 |
32 |
25 |
18.5 |
1410*850*1190 |
|
GJJ-2.5/32 |
2500 |
32 |
25 |
22 |
1410*960*1280 |
|
GJJ-3/32 |
3000 |
32 |
25 |
30 |
1550*1050*1380 |
|
GJJ-4/32 |
4000 |
32 |
25 |
37 |
1605*1200*1558 |
|
GJJ-5/32 |
5000 |
32 |
25 |
45 |
1605*1200*1585 |
|
GJJ-6/32 |
6000 |
32 |
25 |
55 |
1671*1260*1420 |
|
GJJ-8/32 |
8000 |
32 |
25 |
75 |
2725*1398*1320 |
|
GJJ-0.1/40 |
100 |
40 |
35 |
3 |
755*520*935 |
|
GJJ-0.3/40 |
300 |
40 |
35 |
5.5 |
1020*676*1065 |
|
GJJ-0.5/40 |
500 |
40 |
35 |
7.5 |
1100*676*1065 |
|
GJJ-0.8/40 |
800 |
40 |
35 |
11 |
1100*770*1100 |
|
GJJ-1/40 |
1000 |
40 |
35 |
15 |
1410*850*1190 |
|
GJJ-1.5/40 |
1500 |
40 |
35 |
22 |
1410*850*1280 |
|
GJJ-2/40 |
2000 |
40 |
35 |
30 |
1550*1050*1380 |
|
GJJ-2.5/40 |
2500 |
40 |
35 |
37 |
1605*1200*1585 |
|
GJJ-3/40 |
3000 |
40 |
35 |
45 |
1605*1200*1585 |
|
GJJ-4/40 |
4000 |
40 |
35 |
55 |
1671*1260*1420 |
|
GJJ-5/40 |
5000 |
40 |
35 |
75 |
2000*1400*1500 |
|
GJJ-6/40 |
6000 |
40 |
35 |
90 |
2825*1500*1320 |
|
GJJ-0.1/60 |
100 |
60 |
50 |
4 |
1020*676*1065 |
|
GJJ-0.2/60 |
200 |
60 |
50 |
5.5 |
1020*676*1065 |
|
GJJ-0.360 |
300 |
60 |
50 |
7.5 |
1100*676*1065 |
|
GJJ-0.560 |
500 |
60 |
50 |
11 |
1100*770*1100 |
|
GJJ-0.8/60 |
800 |
60 |
50 |
18.5 |
1410*850*1190 |
|
GJJ-1/60 |
1000 |
60 |
50 |
22 |
1470*960*1280 |
|
GJJ-1.5/60 |
1500 |
60 |
50 |
37 |
1605*1200*1585 |
|
GJJ-2/60 |
2000 |
60 |
50 |
45 |
2000*1300*1585 |
|
GJJ-2.5/60 |
2500 |
60 |
50 |
55 |
2000*1300*1585 |
|
GJJ-3/60 |
3000 |
60 |
50 |
75 |
2725*1398*1320 |
|
GJJ-4/60 |
4000 |
60 |
50 |
90 |
2825*1500*1320 |
|
GJJ-5/60 |
5000 |
60 |
50 |
110 |
2825*1500*1320 |
|
GJJ-0.1/70 |
100 |
70 |
60 |
5.5 |
1020*676*1065 |
|
GJJ-0.2/70 |
200 |
70 |
60 |
7.5 |
1100*676*1065 |
|
GJJ-0.3/70 |
300 |
70 |
60 |
11 |
1100*770*1100 |
|
GJJ-0.5/70 |
500 |
70 |
60 |
15 |
1410*850*1190 |
|
GJJ-1/70 |
1000 |
70 |
60 |
22 |
1410*850*1280 |
|
GJJ-1.5/70 |
1500 |
70 |
60 |
37 |
1605*1200*1585 |
|
GJJ-2/70 |
2000 |
70 |
60 |
45 |
2000*1300*1585 |
|
GJJ-2.5/70 |
2500 |
70 |
60 |
55 |
1671*1260*1420 |
|
GJJ-3/70 |
3000 |
70 |
60 |
75 |
2725*1398*1320 |
|
GJJ-4/70 |
4000 |
70 |
60 |
90 |
2825*1500*1320 |
|
GJJ-5/70 |
5000 |
70 |
60 |
110 |
2825*1500*1320 |
|
GJJ-0.1/100 |
100 |
100 |
80 |
7.5 |
1100*676*1065 |
|
GJJ-0.2/100 |
200 |
100 |
80 |
11 |
1100*770*1100 |
|
GJJ-0.3/100 |
300 |
100 |
80 |
15 |
1410*850*1190 |
|
GJJ-0.5/100 |
500 |
100 |
80 |
18.5 |
1410*850*1190 |
|
GJJ-1/100 |
1000 |
100 |
80 |
37 |
1605*1200*1585 |
|
GJJ-2/100 |
2000 |
100 |
80 |
75 |
2725*1398*1320 |
|
GJJ-3/100 |
3000 |
100 |
80 |
110 |
2825*1500*1320 |
Notes：
1. The technical parameters of homogenizer in chart are all standard, any requirements, please put forward.
2. process parameters needed provided: the material properties, production, maximum pressure, special requirements, etc.

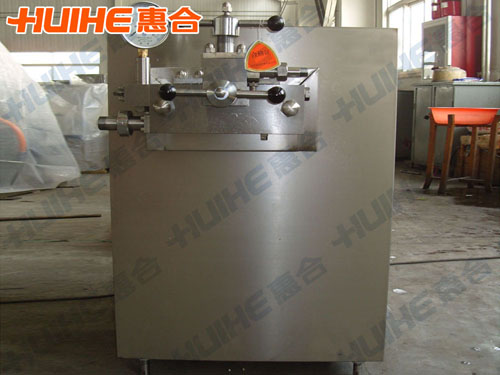

High Sheared Homogenizer Finished Picture
