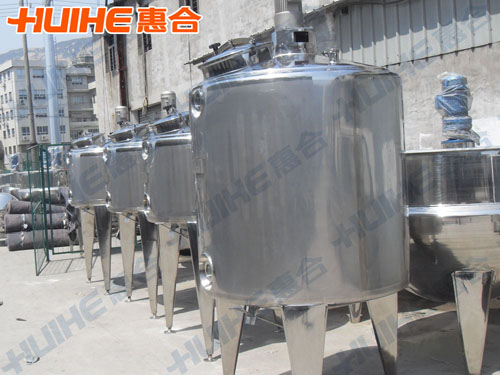

Fermentation Tank

Fermentation tank equipped with laminate and insulating layer and can heat, cool and insulate. The stainless steel tank body and up & down head (or prototype) are processed using R angle. The inner surface is mirror-polished and no dead corners, while the fully enclosed design ensures that the material is always at a state of no pollution to mix and ferment.

Classification of Fermentation Tank

1. According to Structure: opening on the head & conical sealed head on the bottom, up & down elliptical sealed head

2. According to Heating Type: there are Steam Heating and Electric Heating

3. According to Volume: there are 100L-1000L, also can design and facture in accordance with customers’ requirements.

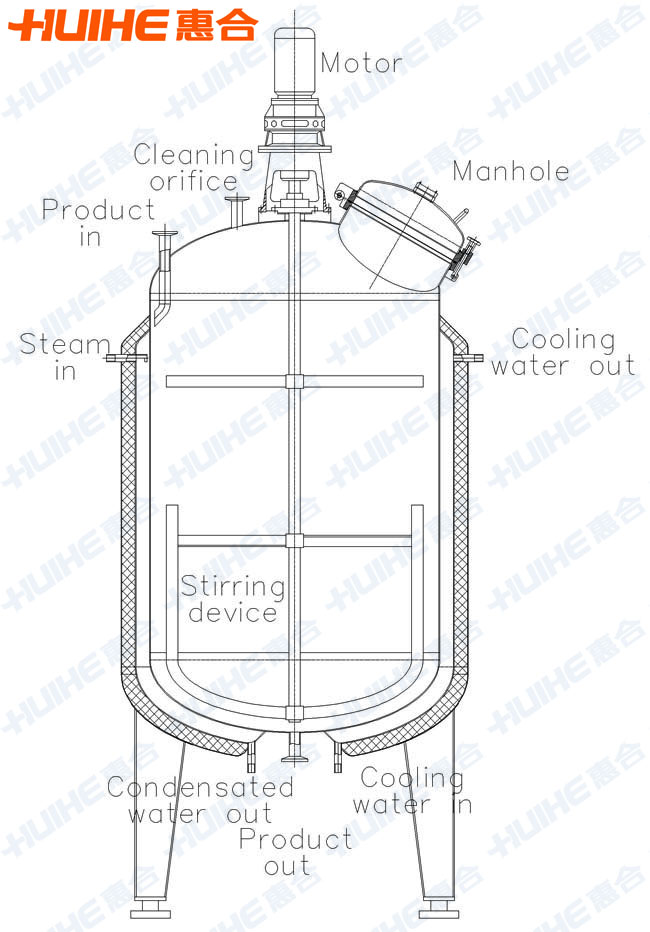

Structure of Fermentation Tank

Usages of Fermentation Tank

Fermentation tank is mainly used for dairy, food, biotechnology, beverage, wine and other industry to stir and ferment.

Characteristics of Fermentation Tank

1. This fermentation equipment can be CIP cleaned online and SIP sterilization (121°C/0.1MPa).

2. Designed in accordance with sanitary requirement, so the structural design is very user-friendly and easy to operate. While, smooth transmission, low noise.

3. There is appropriate diameter, the stirring device is made on demand, energy-saving, stirring and good fermentation effect.

Technical Parameters of Fermentation Tank

Volume	300L	400L	500L	600L	800L	1000L	1500L	2000L	3000L
Body diameter（mm）	Φ800	Φ800	Φ900	Φ1000	Φ1000	Φ1000	Φ1200	Φ1300	Φ1600
Body height（mm）	600	800	800	800	1000	1220	1220	1500	1500
Motor power（kw）	0.55	0.55	0.75	0.75	0.75	0.75	1.5	2.2	3
Stirring speed(rpm)	36r/min
Working pressure	≤0.09Mpa
Working temperature	＜100℃
Accessories	Sanitary manhole, cleaning ball、safety valve、pressure gauge

Notes:

1. The technical parameters of fermentation tank is standard configuration. Any specific requirements, please point out.

2. The jacket working pressure≤ 0.09Mpa also can be made according to customers’ requirements.

3. The process parameters that need provided when choosing the fermentation tank: the nature of material, working pressure, temperature, specific requirements, etc.

Technical Requirements of Fermentation Tank

1. File support: the structural size drawing of the device (PDF) and instructions are available.

2. Required by operated function, the following criteria are adopted to design, manufacture and test

A. << Standards for quality control of pharmaceutical production (Revised 1998)>> terms of Chapter IV 31-37;

B. << The Steel Pressure Vessel (GB150-1998)>>;

C. << The Steel Welding Normal Pressure Vessel (JB/T 4735-1997)>>;

D. << Food Machinery Safety and Heath (GB 16798-1997)>>.

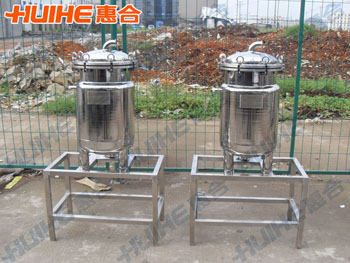

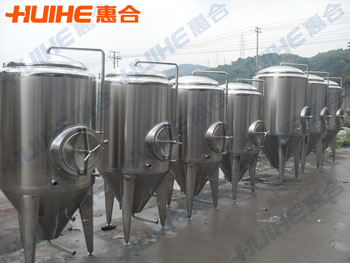

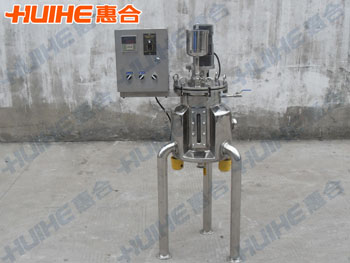

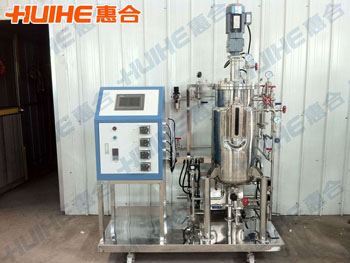

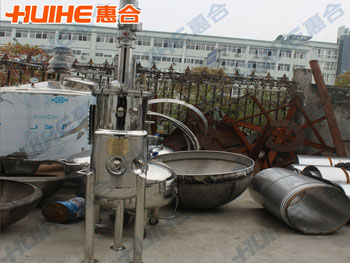

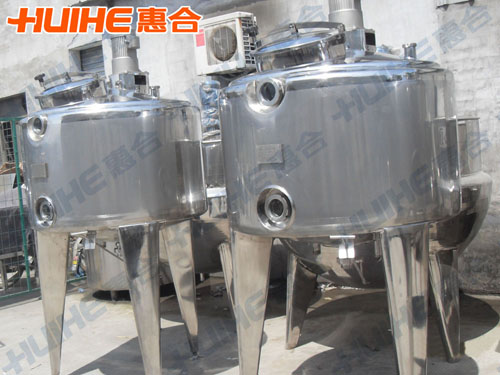

Fermentation Tank Finished Picture
