Your are here: Home >> Products >>Jacketed Kettle with Agitator
Jacketed kettle with agitator usual use for higher viscosity material, such as porridge, invert sugar etc. Agitate have normal agitate and scraping the bottom and edge, according to the material of the viscous to choose the type which to use.Directory
- Live Demonstration of Jacketed Kettle
- Structure of Jacketed Kettle with Agitator
- Usage of Jacketed Kettle with Agitator
- Characteristics of Jacketed Kettle with Agitator
- Technical Parameters of Jacketed Kettle with Agitator
- Jacketed Kettle with Agitator Finished Picture
Live Demonstration of Jacketed Kettle

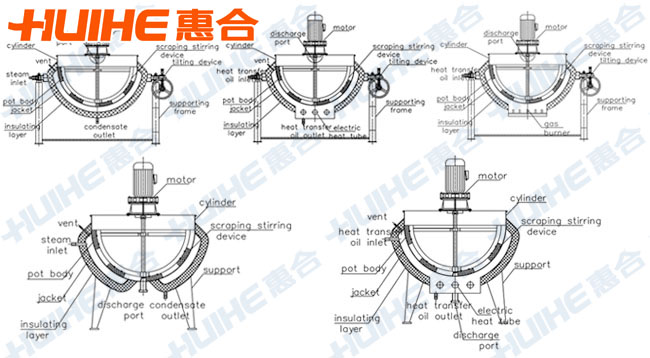

Structure of Jacketed Kettle with Agitator
Usage of Jacketed Kettle with Agitator
Jacketed kettle with agitator usual use for porridge, invert sugar , boil the chicken, fried a dish and the material has the consistency.
Characteristics of Jacketed Kettle with Agitator
Accelerating heating speed, improve food quality, safe and convenient, rapid agitating viscosity material make it nonstick skillet!
Technical Parameters of Jacketed Kettle with Agitator
|
Model |
50 |
100 |
200 |
300 |
400 |
500 |
600 |
800 |
1000 | |
|
Caliber（mm） |
Φ600 |
Φ700 |
Φ800 |
Φ900 |
Φ1000 |
Φ1100 |
Φ1200 |
Φ1400 |
Φ1500 | |
|
Depth of Pot（mm） |
400 |
450 |
530 |
630 |
680 |
730 |
780 |
830 |
900 | |
|
Heating area（m2） |
0.45 |
0.58 |
1.12 |
1.42 |
1.75 |
2 |
2.3 |
3.2 |
3.9 | |
|
Boiling time（min） |
5 |
8 |
11 |
14 |
18 |
22 |
25 |
34 |
40 | |
|
Interface size |
Steam pipe |
3/4” |
1” |
2” | ||||||
|
Condensate pipe |
3/4” |
1” | ||||||||
|
Working pressure |
≤0.09Mpa（can be adapted according to customers’ requirement） | |||||||||
|
Stirring speed |
36 r/min（can be adapted according to customers’ requirement） | |||||||||
|
Stirring power（Kw） |
0.55 |
0.55 |
0.75 |
1.1 |
1.1 |
1.5 |
1.5 |
2.2 |
2.2 | |
Notes:
1. The stirring power in the technical parameters of jacketed kettle chart is standard configuration. Any specific requirements, please let us know.
2. Working pressure in the middle layer ≤0.09Mpa, also, this can be adapted according to customers’ requirement.
3. The process parameters that need provided when choosing the Jacketed Kettle: the nature of material, working pressure, temperature, specific requirements, etc.
Jacketed Kettle with Agitator Finished Picture

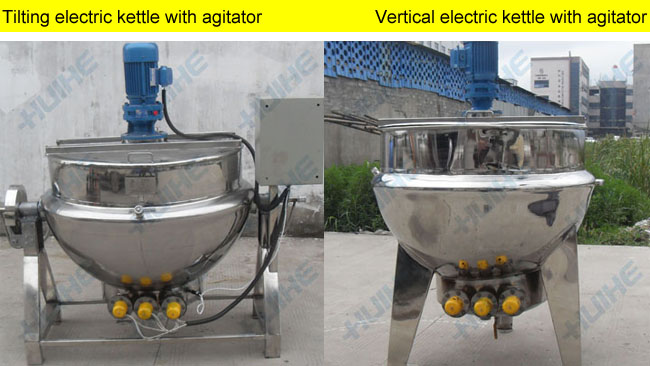

electric jacket kettle with agitator

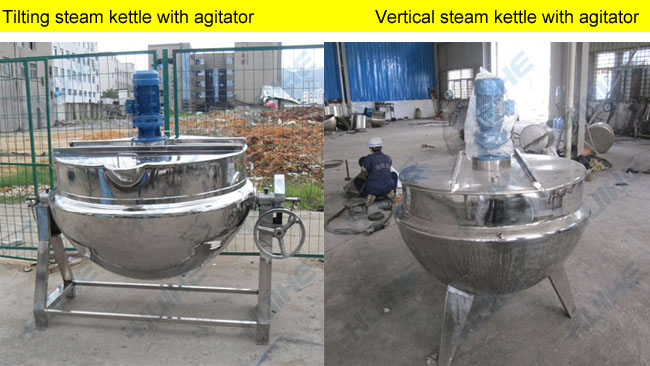

steam jacket kettle with agitator
