Rising-film Concentrator

Rising-film concentrator is widely suitable for containing water or organic solvents and suspended solids content at a low concentration of dilute solution and solvent recovery. Such as pollution of solvent recovery, wastewater treatment and the concentration of the extract, juice concentrates, etc.

Structure of Rising-film Concentrator

1. Calculating on SN3-1000 model, it saves about 5400 tons of steam, 140,000 tons of water, 130,000 kilowatts of electric power, totally worth of 200,000-250,000 RMB, compared with that of the sing-effect one.

2. The concentrator adopts the vaporization method of minus pressure outer thermal natural cycle, which features rapid vaporization speed and large specific gravity high up to 1.2-1.35 (general Chinese traditional medicine immersed cream).

3. The concentrator adopts dual-effect simultaneous vaporization that leaves the secondary utilized. Compared with the dual-effect concentrator, the energy consumption lowers about 67%. The profit from the energy saving of one year is equal to the investment on the machine.

4. Operation characteristics of multi-function:

(1). the concentration of alcohol recyclable is about 80%.

(2). the repeated united cream receiving is available to the single-dual-and triple-effect.

(3). the intermittent and continuous feeding is available.

5. The contact parts of the concentrator and material is made with the stainless steel, meeting the standard of the GMP, fine appearance, insulation layer in the heater and vaporizer, the enclosure of the insulation layer is made of stainless steel, the surface undergoes mirror polish or sub optical treatment.

Usages of Rising-film Concentrator

This concentrator is widely used in Chinese medicine, western medicine, starch sugar, food, beverage, wine and other material enrichment and industrial recycling of organic solvent.

Characteristics of Rising-film Concentrator

1, the material is by the column tube into the upper and the material distribution device evenly into each root canal and form a thin film along the tube surface. By dividing wall heat transfer, material to boiling, boiling gas drive liquid high-speed flow down, into the vapors liquid separator, the product is able to concentrate.

2, heat transfer coefficient has been further improved, material residence time is shorter, and evaporation temperature is lower.

3, can be used according to the customer's requirements, can be designed to double, triple effect, and the form of multiple effect.

4. The contact parts of the concentrator and material is made with the stainless steel, meeting the standard of the GMP, fine appearance, insulation layer in the heater and vaporizer, the enclosure of the insulation layer is made of stainless steel, the surface undergoes mirror polish or sub optical treatment.

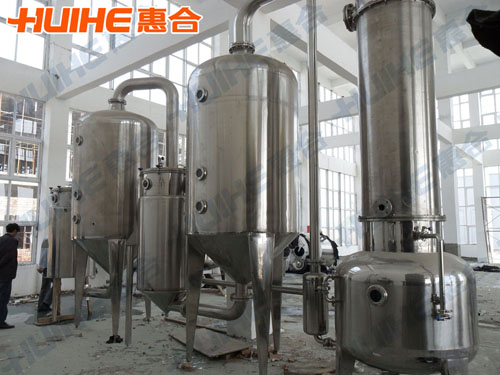

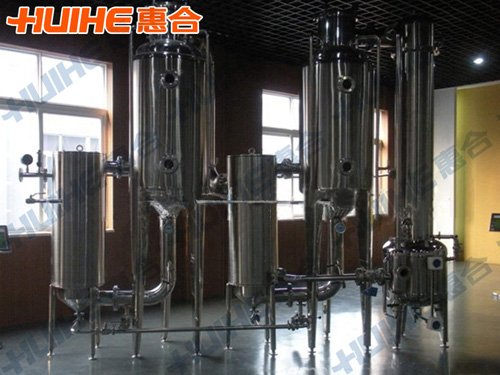

Rising-film Concentrator Finished Picture
